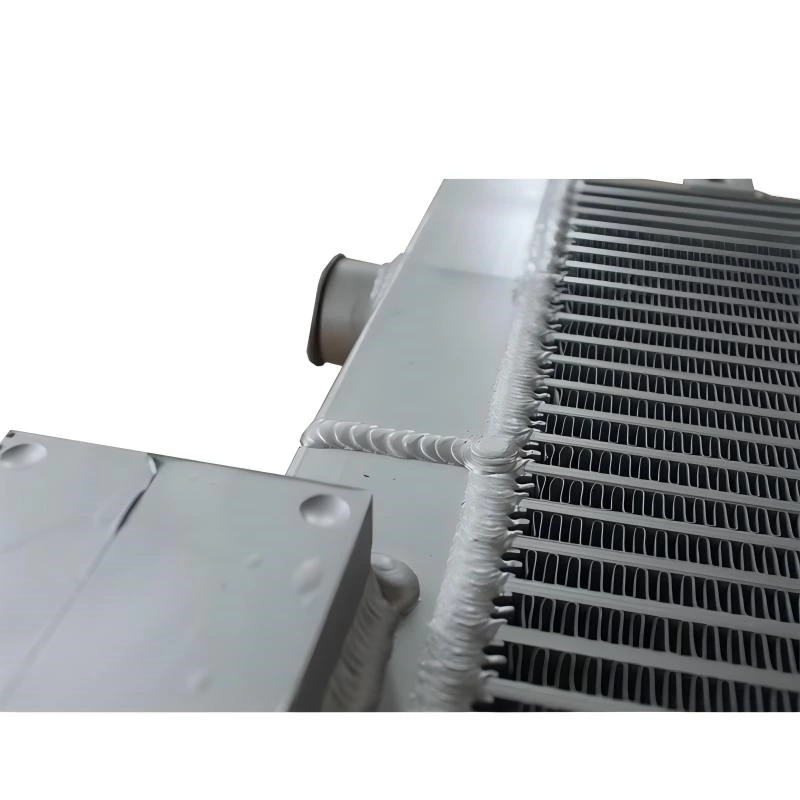

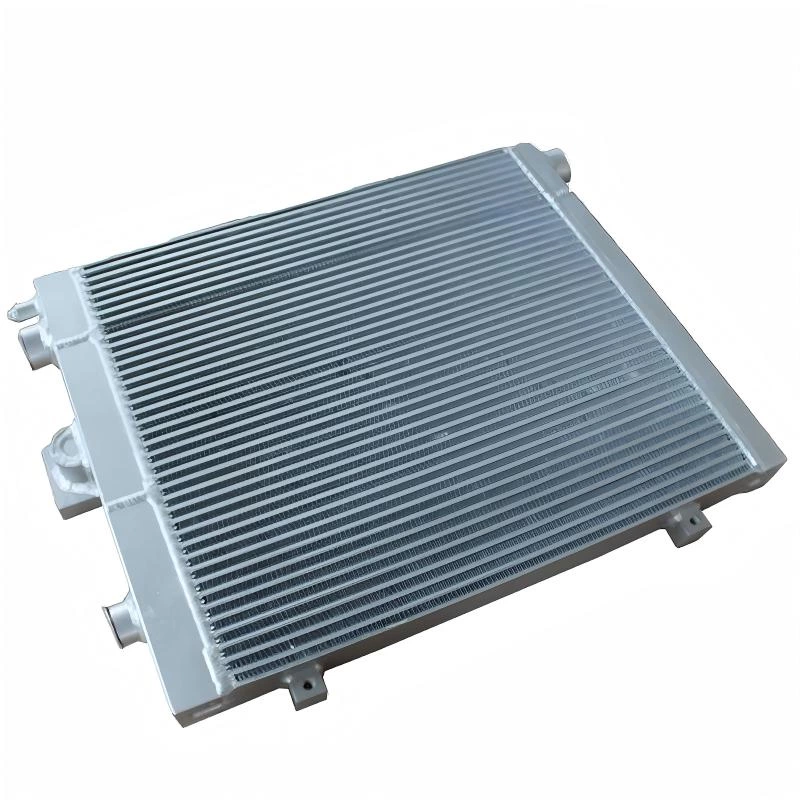

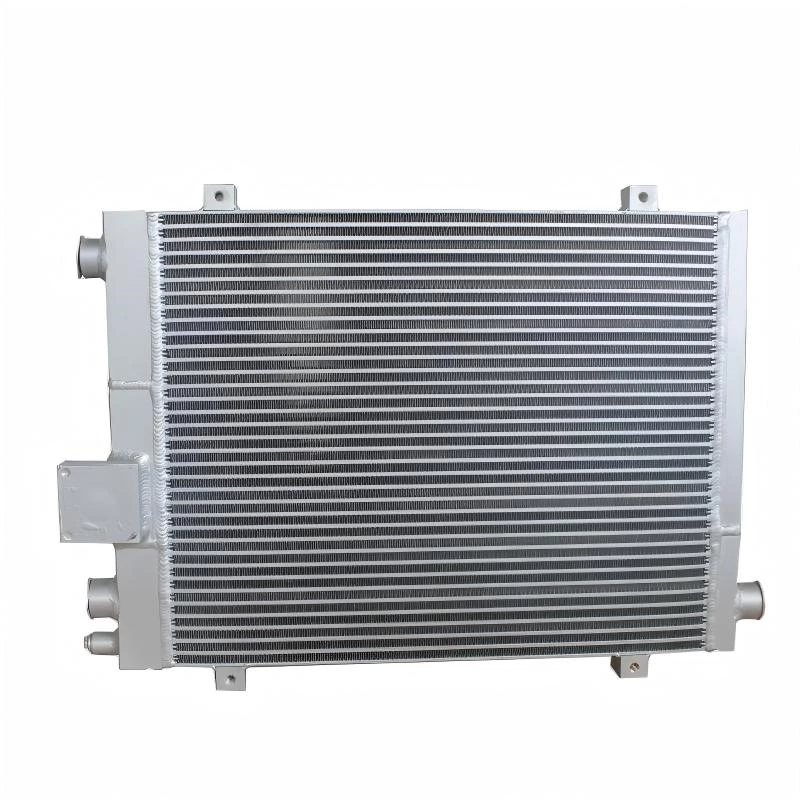

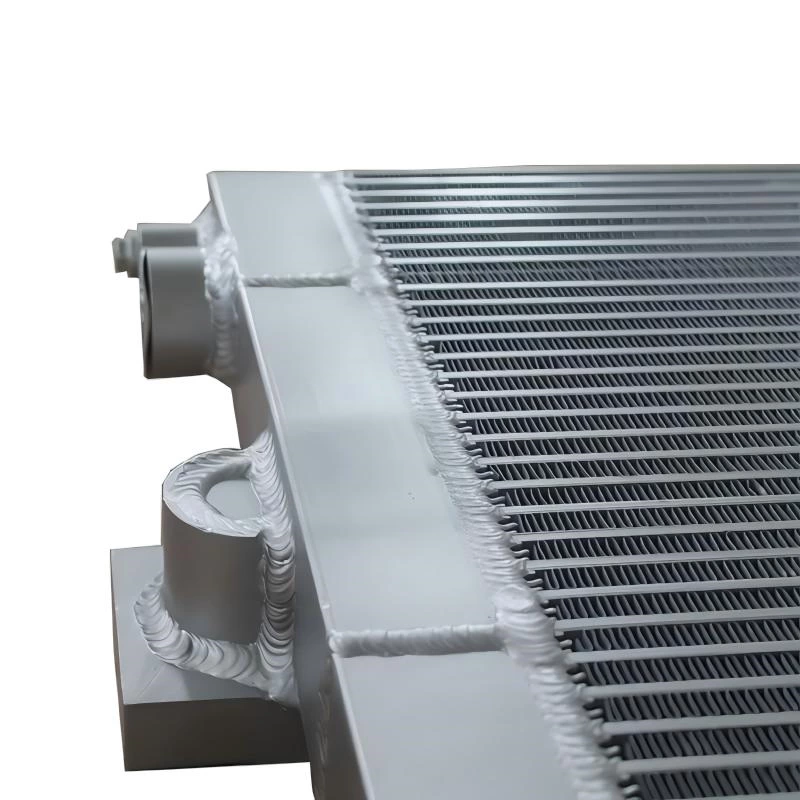

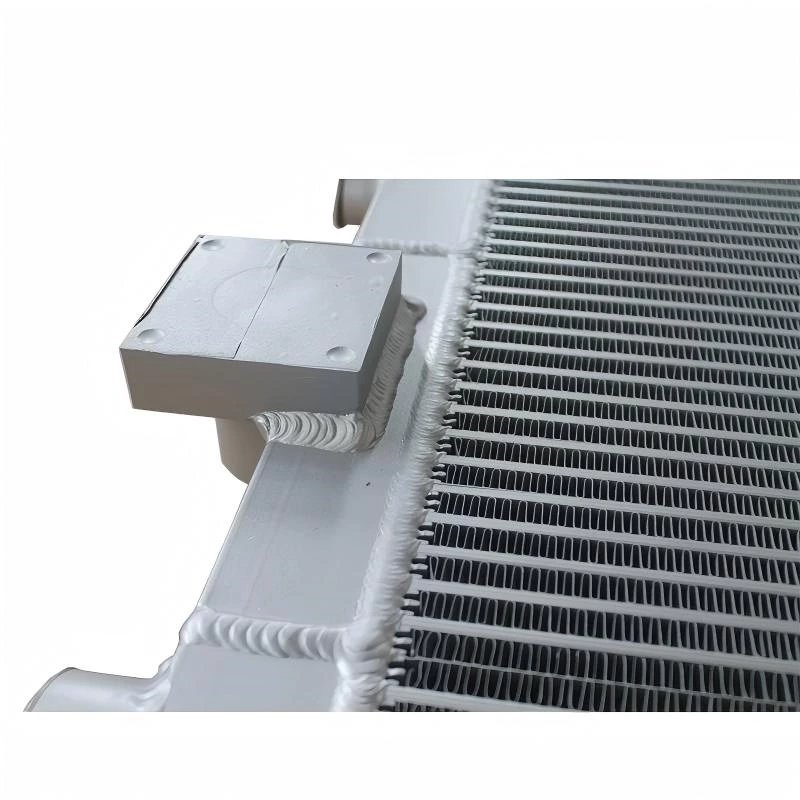

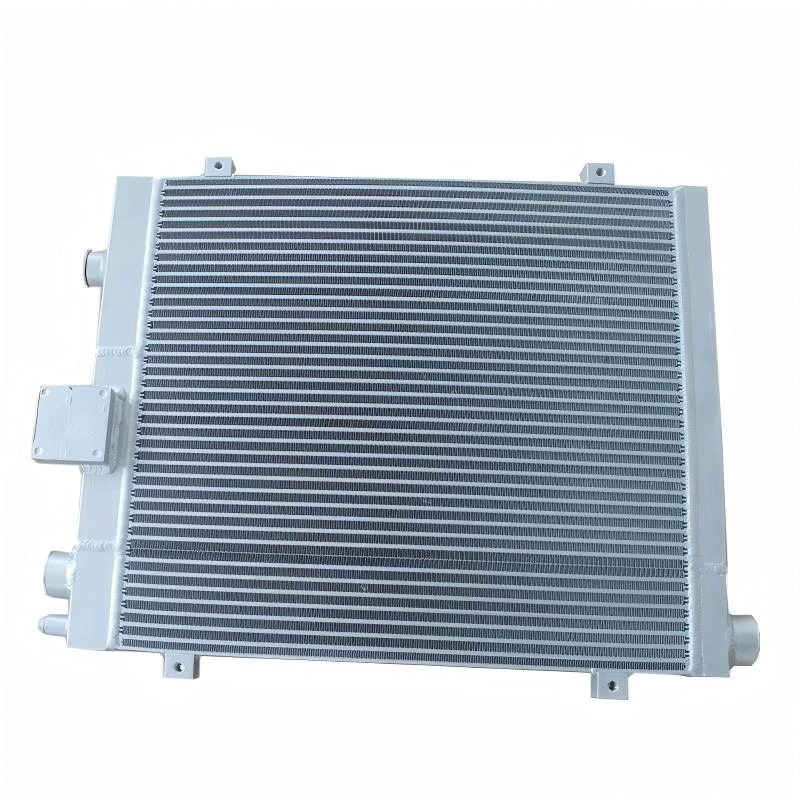

Specifications of 15KW Screw Air Compressor Cooler
The following specifications provide key technical data of the 15KW Screw Air Compressor Cooler, including structural size, pressure capacity, and connection configuration, helping ensure proper selection for compressor systems.
| Brand Name |
JSY |
| Product Name |
Compressor Cooler B3801 |
| Model Number |
B3801 |
| Material |
aluminum alloy |
| Weight(Kg) |
9.25kg |
| Compatible air compressor specifications |
20HP(15KW) |
| OEM/ODM |
YES |
| External dimensions (mm) |
520*660*45mm |
| Core dimensions (mm) |
470*580*45mm |
| Inlet/outlet diameter (mm) |
φ40 & G 3/4 |
| Maximum Pressure Rating |
15bar |
| Certification |
ISO9001:2008 |
| Structure |
Plate fin |
| Fields |
Air compressor |
| Fin type |
Perforated-fin, wavy-fin, serrated-fin, plate-fin and louvered-fi |
How to Select the Right Model
When selecting a compressor cooler, key factors include compressor power, working pressure, airflow demand, and installation space. For 15KW systems, it is important to choose a cooling solution that provides stable performance while maintaining compact structure and compatibility with standard compressor configurations.
Key Advantages
- High-efficiency heat transfer improves overall cooling performance
- Plate-fin structure enhances heat exchange efficiency in compact systems
- Strong pressure resistance ensures reliable operation in 15bar systems
- Corrosion-resistant materials extend service life in industrial environments
- Flexible fin structure options support different cooling requirements
- Balanced design suitable for standard 15KW compressor systems
Suitable Applications
- 15KW (20HP) screw air compressor systems
- General industrial compressed air systems
- Manufacturing plants with stable air demand
- Compressor repair and replacement projects
- OEM compressor equipment integration
- Industrial applications requiring reliable cooling performance
Product Overview
The 15KW Screw Air Compressor Cooler is designed as a standard solution for industrial compressor systems requiring reliable and efficient cooling performance. Its aluminum plate-fin structure ensures effective heat dissipation for both compressed air and lubricating oil.
Compared with lower-capacity models, this configuration provides improved cooling stability and broader compatibility with common compressor systems. At the same time, it maintains a balanced structure that supports both performance and cost efficiency.
This makes it an ideal choice for general industrial applications where stable operation, durability, and flexible integration are required.
Why Cooling Matters
In screw air compressor systems, both compressed air and lubricating oil generate heat during operation. Without proper cooling, elevated temperatures can reduce efficiency, affect lubrication performance, and accelerate component wear.
A properly selected cooling system helps maintain stable operating conditions, improve efficiency, and extend equipment service life in industrial environments.
Industrial Cooling Solution
The 15KW Screw Air Compressor Cooler offers a practical and reliable solution for general-purpose compressor cooling. It is suitable for OEM manufacturers, maintenance projects, and industrial users seeking efficient, durable, and cost-effective cooling solutions.
