Specifications of 11–15KW Screw Air Compressor Cooler
The following specifications summarize the main technical data of the 11–15KW Screw Air Compressor Cooler, helping users evaluate compatibility, installation space, pressure requirements, and cooling configuration for compressor system integration.
| Brand Name |
JSY |
| Product Name |
Compressor Cooler B3800 |
| Model Number |
B3800 |
| Material |
aluminum alloy |
| Weight(Kg) |
4.9kg |
| Compatible air compressor specifications |
10HP(7.5KW) |
| OEM/ODM |
YES |
| External dimensions (mm) |
440*395*45mm |
| Core dimensions (mm) |
400*325*45mm |
| Inlet/outlet diameter (mm) |
G 3/8 & G 1/4 |
| Maximum Pressure Rating |
40Bbar |
| Applicable Industries |
Machinery Repair Shops, Machinery Repair Shops,Manufacturing Plant |
| Certification |
CCC |
How to Select the Right Model
When selecting a cooler for compressor systems, it is important to consider compressor power, installation space, working pressure, and connection size. For applications requiring stable air and oil cooling in small to medium industrial compressor systems, the B3800 configuration offers a practical balance of compact structure, cooling efficiency, and installation compatibility.
Key Advantages
- High-efficiency heat transfer improves cooling response and operating stability
- Plate-fin structure helps reduce intake air and oil temperature effectively
- Strong mechanical structure supports reliable operation under pressure fluctuation
- Corrosion-resistant material improves durability in industrial environments
- Compact size helps simplify installation in limited equipment space
- Cost-effective design balances cooling performance and overall project cost
Suitable Applications
- 11–15KW screw air compressor systems in industrial use
- Small to medium compressor units requiring air and oil cooling
- Manufacturing plants with continuous compressed air demand
- Machinery repair shops using compressor cooling replacement parts
- OEM compressor systems requiring compact cooler integration
- Industrial equipment requiring stable thermal control and long service life
Product Overview

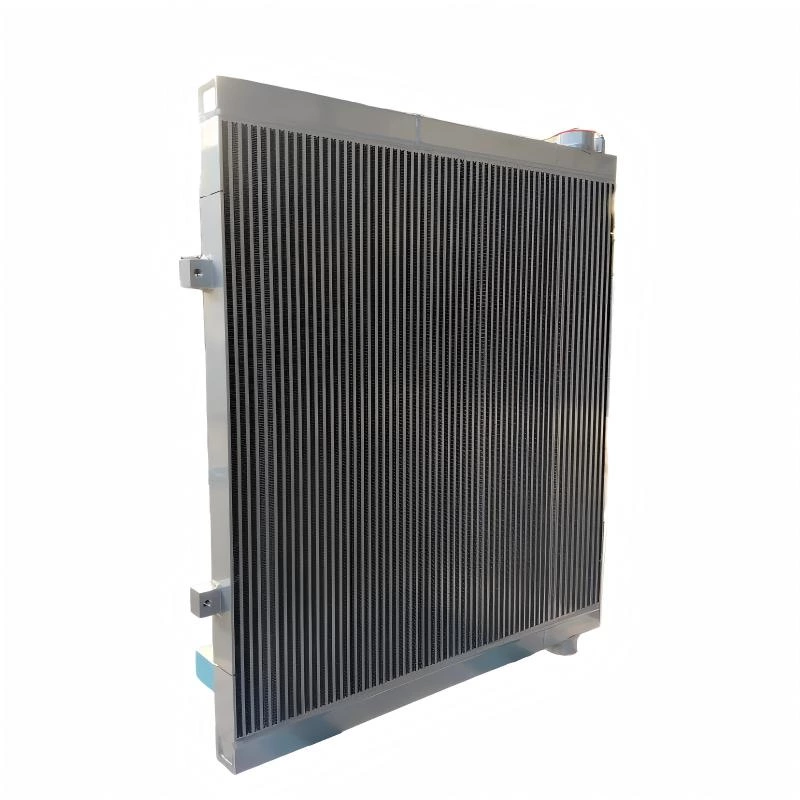

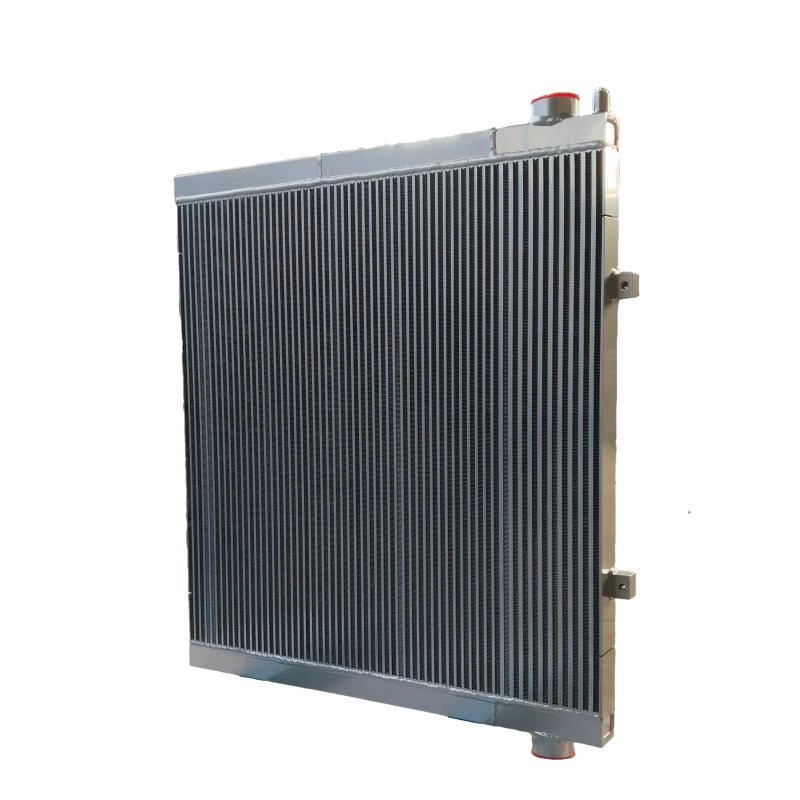

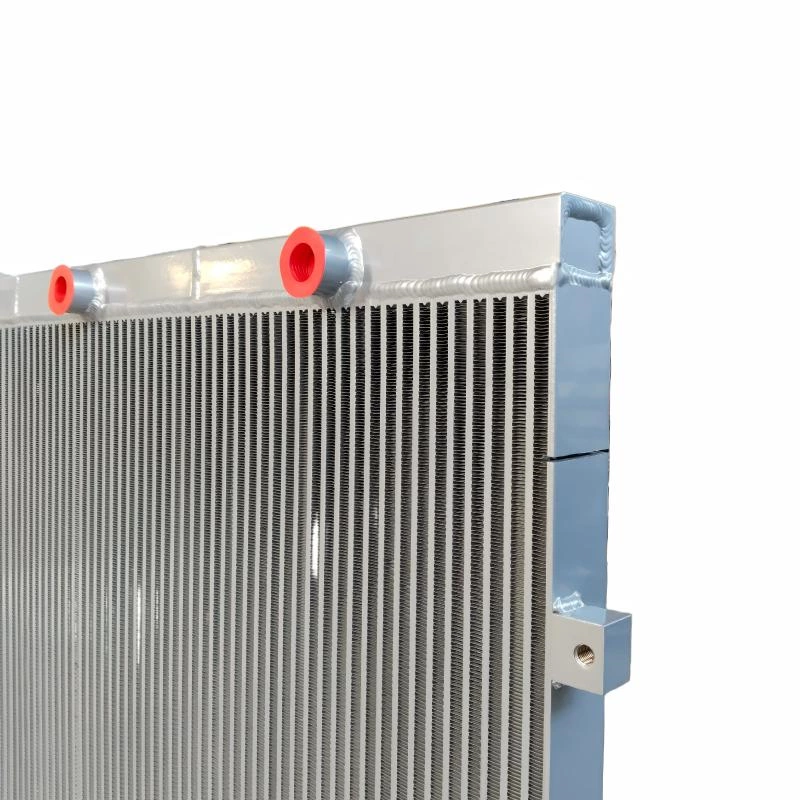

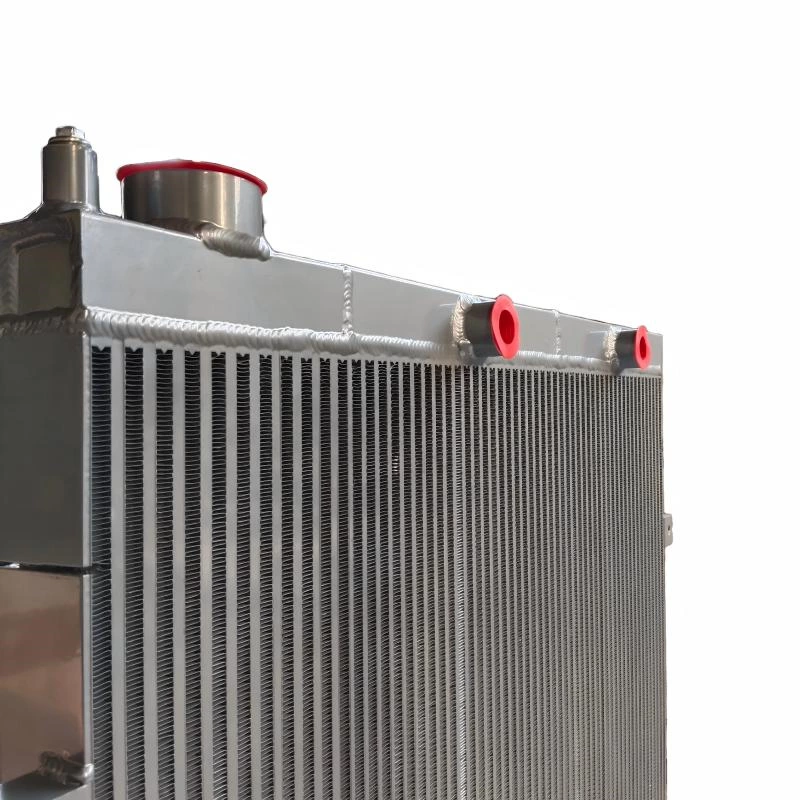

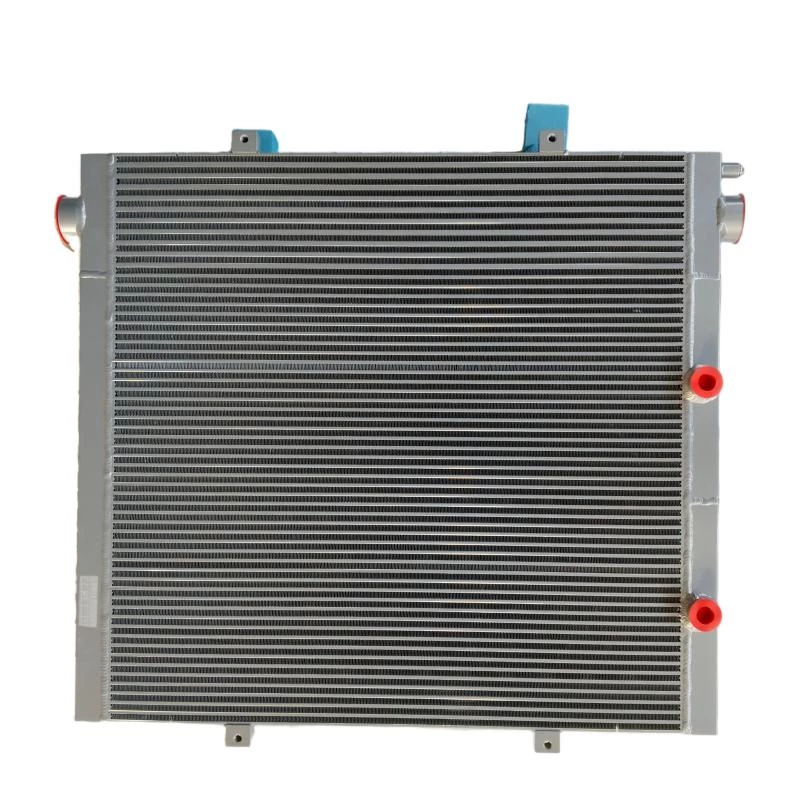

The 11–15KW Screw Air Compressor Cooler is engineered to provide stable and efficient cooling performance for medium-capacity compressor systems. Utilizing an aluminum plate-fin structure, it ensures effective heat dissipation for both compressed air and lubricating oil under continuous operation.
Compared with smaller-capacity cooling units, the 11–15KW Screw Air Compressor Cooler is designed to handle increased thermal load while maintaining consistent performance and system stability. The optimized plate-fin core offers a larger heat exchange surface, improving cooling efficiency without significantly increasing system size.
This configuration makes it particularly suitable for industrial environments where compressors operate under moderate load conditions, requiring a balance between cooling performance, structural durability, and installation flexibility.
Custom Compressor Cooler Solutions
We support customization for different compressor systems and installation requirements, including:
- Core size and cooling capacity adjustment
- Inlet and outlet layout design
- Mounting structure and installation type
- Application-specific cooling solutions
Industrial Cooling Solution
The 11–15KW Screw Air Compressor Cooler is suitable for equipment manufacturers, compressor repair projects, and industrial users looking for a compact and reliable cooling solution. It can be used in OEM integration, replacement projects, and general industrial compressor applications where stable performance, structural durability, and installation convenience are all important.
