Compatible JCB Equipment Models and Dimensions
Our radiator solutions are suitable for a wide range of JCB construction equipment, including:
| Model |
Equipment Type |
Cooling Type |
Core Size (mm) |
Notes |
| JCB JS130LC |
Excavator |
Water Radiator |
900 × 300 × 110 |
Standard excavator cooling |
| JCB JS140 |
Excavator |
Water Radiator |
900 × 300 × 110 |
Medium-duty operation |
| JCB JS200SC |
Excavator |
Water Radiator |
850 × 320 × 120 / 830 × 400 × 165 |
High-load conditions |
| JCB JS220LC |
Excavator |
Water Radiator |
850 × 320 × 120 / 830 × 400 × 165 |
Continuous operation |
| JCB JS225 |
Excavator |
Water Radiator |
830 × 380 × 140 |
Industrial application |
| JCB JS235 |
Excavator |
Water Radiator |
850 × 320 × 120 / 830 × 380 × 140 |
Stable cooling performance |
| JCB JS240 |
Excavator |
Water Radiator |
850 × 320 × 120 |
Heavy-duty use |
| JCB JS240LC |
Excavator |
Water Radiator |
830 × 380 × 140 |
High efficiency cooling |
| JCB JS290 |
Excavator |
Water Radiator |
850 × 320 × 120 |
Large excavator systems |
| JCB JS460LC |
Excavator |
Water Radiator |
540 × 315 × 110 |
High-capacity cooling |
| JCB 803 |
Mini Excavator |
Water Radiator |
220 × 100 × 40 |
Compact equipment |
| JCB30 / 915200XD226 |
Compact Equipment |
Water Radiator |
640 × 500 |
Industrial use |
| JCB30 / 304000 |
Compact Equipment |
Water Radiator |
Custom Size |
Custom configuration |
| JCB205 |
Excavator |
Water Radiator |
425 × 850 × 84 |
Medium application |
| JCB130 |
Excavator |
Water Radiator |
940 × 390 × 115 |
Standard configuration |
| JCB 3CX / 4CX |
Backhoe Loader |
Water Radiator |
Custom Size |
Loader/backhoe systems |
| JCB332/G3691 |
Industrial Equipment |
Water Radiator |
Custom Size |
Special application |
| JCB332/C5000 |
Industrial Equipment |
Water Radiator |
520 × 635 |
Heavy-duty cooling |
| JCB332/C8731 |
Industrial Equipment |
Water Radiator |
505 × 625 × 106 |
Stable operation |
| JCB332/C8935 |
Industrial Equipment |
Water Radiator |
Custom Size |
Custom design |
| JCB402/L5575 |
Industrial Equipment |
Water Radiator |
520 × 635 |
Industrial cooling |
| JCB30/926051 XD026 |
Compact Equipment |
Water Radiator |
620 × 655 |
Continuous operation |
| JCB30/925615 |
Compact Equipment |
Water Radiator |
475 × 550 |
Standard cooling |
| JCB30/925545 XD231 |
Compact Equipment |
Water Radiator |

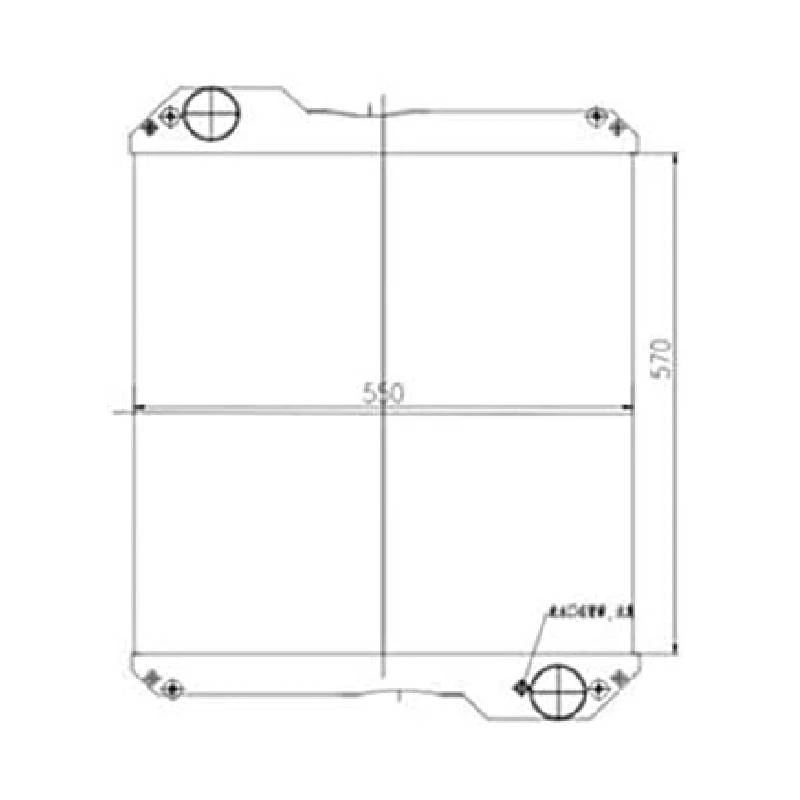

570 × 550 |
Reliable performance |
| JCB240 |
Excavator |
Oil Cooler |
990 × 485 × 140 |
Hydraulic cooling |
The above models and dimensions are for reference only. Custom radiator and oil cooler solutions can be developed based on your equipment model, installation requirements, or technical drawings. Contact us for accurate matching and technical support.

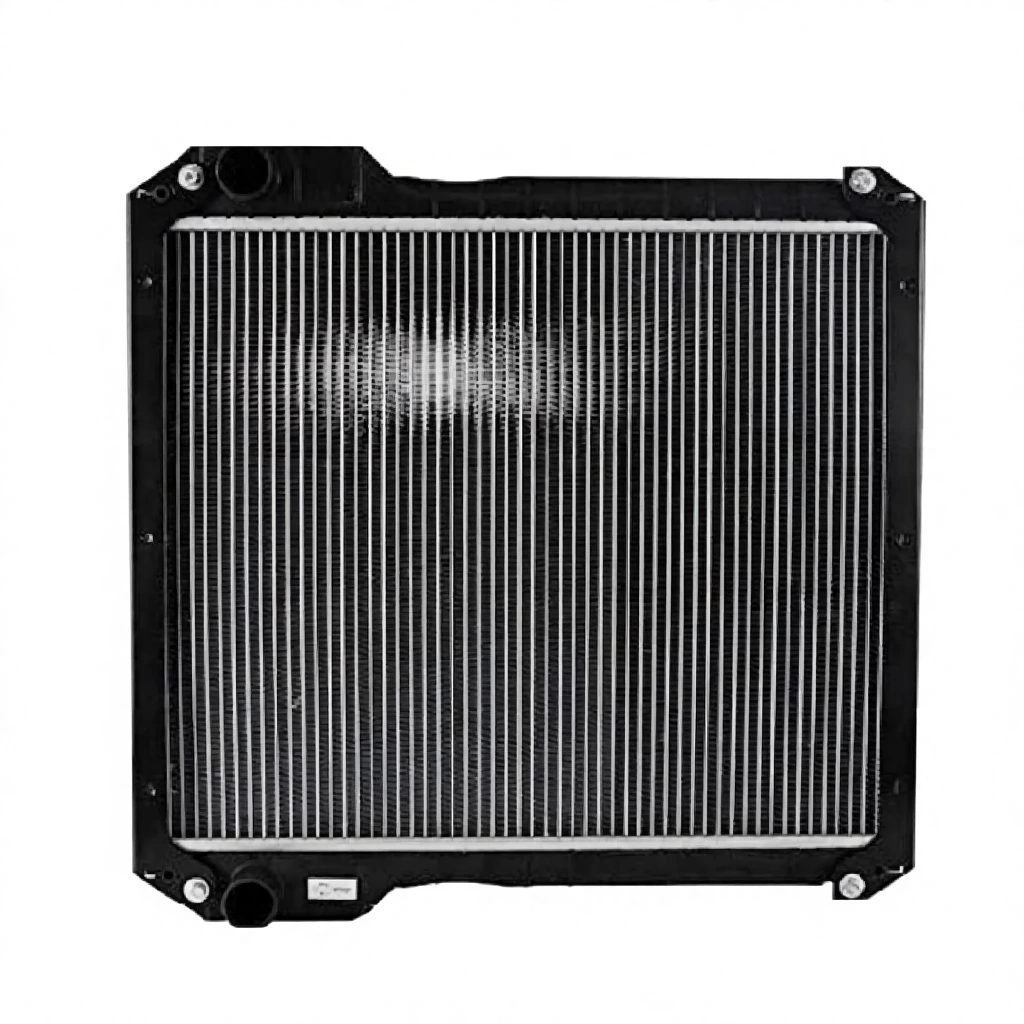

Product Overview
The JCB excavator radiator is engineered to deliver efficient thermal management for construction machinery operating in demanding environments. It supports both engine cooling and hydraulic oil cooling systems, ensuring stable performance under continuous operation.
JCB equipment often operates under heavy loads and extreme working conditions, requiring radiators with strong heat dissipation capacity and durable construction. Optimized coolant flow paths and high thermal conductivity materials help improve cooling efficiency and system reliability.
Applications
- Excavator engine cooling systems
- Hydraulic oil cooling systems
- Backhoe loader cooling systems
- Telehandler and material handling equipment
- Construction and mining machinery
- Continuous heavy-duty industrial environments
Specifications of JCB Excavator Radiator
The following specifications provide general technical information for JCB radiator systems. Detailed configurations can be customized based on different equipment models and working conditions.
| Brand Name |
JSY |
| Product Name |
JCB Excavator Radiator Assembly/Cooler |
| Materials |
Aluminum Alloy |
| Operating Temperature |
-40℃-60 ℃ |
| Tonnage |
3 t - 46 t |
| Applicable Excavators |
JCB |
| Structure |
Plate-Fin |
| Application |
Hydraulic Cooling System |
| Cooling Medium |
Oil/Water |
| Tonnage |
3 t - 46 t |
Why Choose Our JCB Excavator Radiators
- Engineered for JCB radiator systems with high heat transfer efficiency
- Durable structure designed for harsh construction environments
- Corrosion-resistant aluminum ensures long service life
- Stable cooling performance for JCB engine and hydraulic systems
- Supports OEM replacement and custom radiator solutions
Custom JCB Radiator Solutions
- Custom core size and structure
- Multi-model compatibility support
- OEM and replacement radiator solutions
- Optimized airflow and fin structure design
- Designed for specific working conditions
Key Features of JCB Excavator Radiator Assembly/Cooler
1. High-Efficiency Heat Transfer Performance
Manufactured with high thermal conductivity aluminum alloy, this radiator ensures excellent heat dissipation efficiency. It rapidly reduces intake air and hydraulic oil temperatures, helping maintain stable engine performance even under heavy-duty operating conditions.
2. Excellent Strength and Pressure Resistance
Designed to withstand pressure fluctuations commonly found in excavator cooling and compressed air systems, the radiator offers outstanding structural strength, high reliability, and extended service life.
3. Superior Atmospheric Corrosion Resistance
The aluminum construction provides strong resistance to atmospheric corrosion, ensuring long-term durability in outdoor, high-humidity, and dusty working environments.
4. Cost-Effective Cooling Solution
With optimized material selection and manufacturing processes, this radiator delivers excellent performance at a highly competitive price, offering exceptional value for Komatsu excavator replacement and OEM applications.
5. Advanced Anti-Vibration Structure for Harsh Conditions
Equipped with a newly designed vibration-damping frame, the radiator effectively absorbs mechanical vibrations. It performs reliably in harsh environments such as construction sites and mining operations, making it an ideal cooling solution for heavy-duty machinery.
