Compatible Volvo Excavator Models and Dimensions
Our radiator solutions are suitable for a wide range of Volvo construction machinery, including crawler excavators, wheeled excavators, and loaders.
| Model |
Equipment Type |
Cooling Type |
Core Size (mm) |
Notes |
| Volvo EC55B / EC55C |
Mini Excavator |
Oil Cooler |
480 × 555 × 40 |
Hydraulic cooling system |
| Volvo EC55C |
Mini Excavator |
Water Radiator |
560 × 550 × 55 |
Compact cooling solution |
| Volvo EC80 |
Excavator |
Water Radiator |
325 × 720 × 80 |
Small excavator |
| Volvo EC130 |
Excavator |
Water Radiator |
730 × 980 |
Medium-duty operation |
| Volvo EC135B / EC140B |
Excavator |
Water Radiator |
368 × 800 |
Standard configuration |
| Volvo EC140B |
Excavator |
Oil Cooler |
615 × 620 × 75 |
Hydraulic system cooling |
| Volvo EC210B (Old Version) |
Excavator |
Oil Cooler |
800 × 600 × 65 |
Traditional system |
| Volvo EC210B (New Version) |
Excavator |
Oil Cooler |
760 × 330 × 145 |
Electronic fuel injection |
| Volvo EC2109 (New Version) |
Excavator |
Oil Cooler |
750 × 370 × 113 |
Updated cooling system |
| Volvo EC210B |
Excavator |
Water Radiator |
895 × 900 × 72 |
High-efficiency cooling |
| Volvo E210B |
Excavator |
Water Radiator |
720 × 345 × 145 |
Stable operation |
| Volvo EC210D |
Excavator |
Water Radiator |
290 × 875 × 145 |
New generation |
| Volvo EC220D |
Excavator |
Water Radiator |
310 × 870 × 145 |
Improved efficiency |
| Volvo EC240B / EC290B (Old Version) |
Excavator |
Oil Cooler |
990 × 555 × 80 |
Older hydraulic systems |
| Volvo EC240B / EC290B (New Version) |
Excavator |
Oil Cooler |
710 × 450 × 115 |
Updated system design |
| Volvo EC240B / EC240C / EC290C |
Excavator |
Water Radiator |
791 × 598 × 146 |
Multi-model compatibility |
| Volvo EC250D |
Excavator |
Oil Cooler |
980 × 480 × 113 |
Heavy-duty application |
| Volvo EC360B |
Excavator |
Oil Cooler |
750 × 540 × 160 |
Large equipment |
| Volvo EC360B / EC330B / EC330C |
Excavator |
Water Radiator |
638 × 1000 × 146 |
High airflow design |
| Volvo EC460B / EC460C |
Excavator |
Oil Cooler |
750 × 770 × 140 |
High-capacity cooling |
| Volvo EC480 |
Excavator |
Water Radiator |
505 × 1375 × 146 / 714 × 1120 × 146 |
Ultra heavy-duty |
| Volvo EC480 / EC480D / EC480DHR |
Excavator |
Oil Cooler |
820 × 820 × 140 |
Large hydraulic system |
| Volvo EC700B |
Excavator |
Water Radiator |
715 × 1200 × 146 |
Mining application |
| Volvo EC700C |
Excavator |
Water Radiator |
715 × 1120 × 146 |
Heavy-duty use |
| Volvo EC750 / EC950 |
Excavator |
Custom Cooling |
Custom Size |
Ultra-large equipment |
| Volvo L150E / L180E / L220E / L150F / L180F / L220F |
Wheel Loader |
Water Radiator |
688 × 1120 × 146 |
Loader cooling systems |
The above models and configurations are for reference only. Custom radiator and oil cooler solutions can be developed based on your equipment model, technical drawings, and installation requirements.
Product Overview

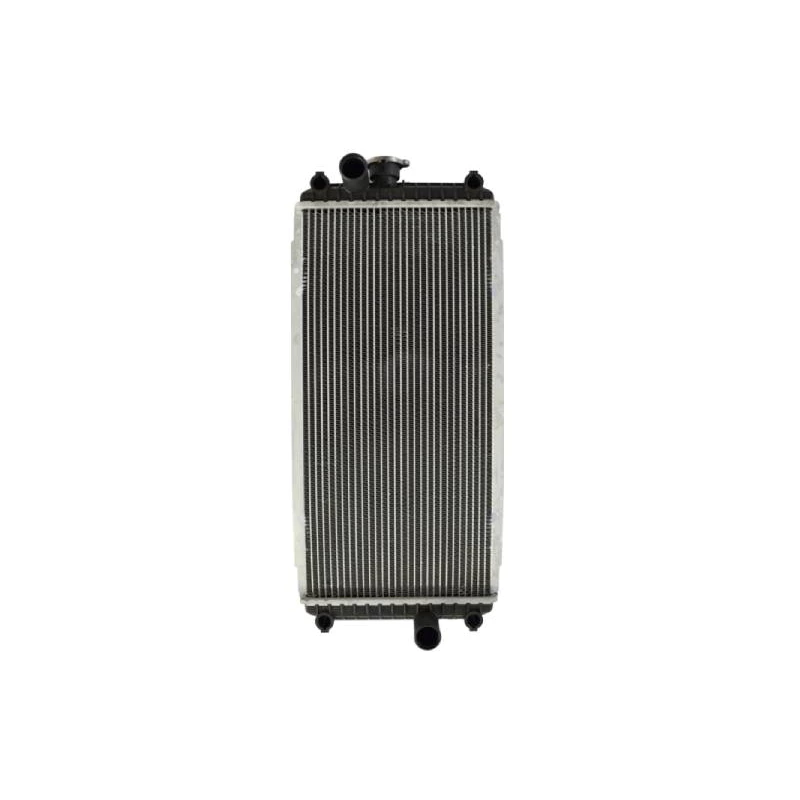

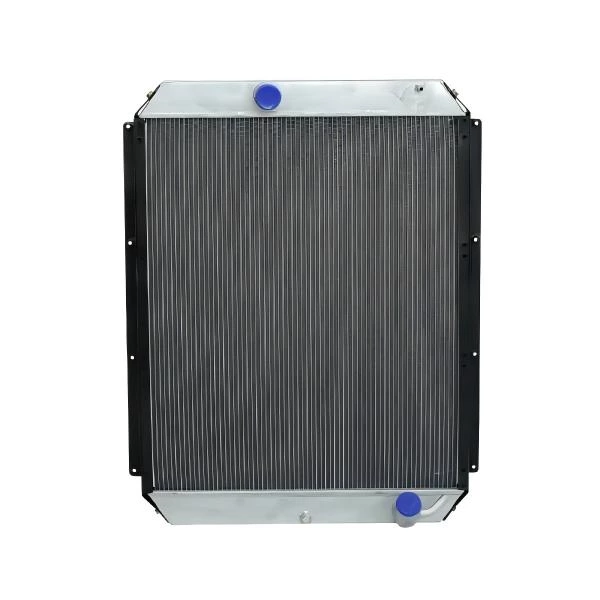

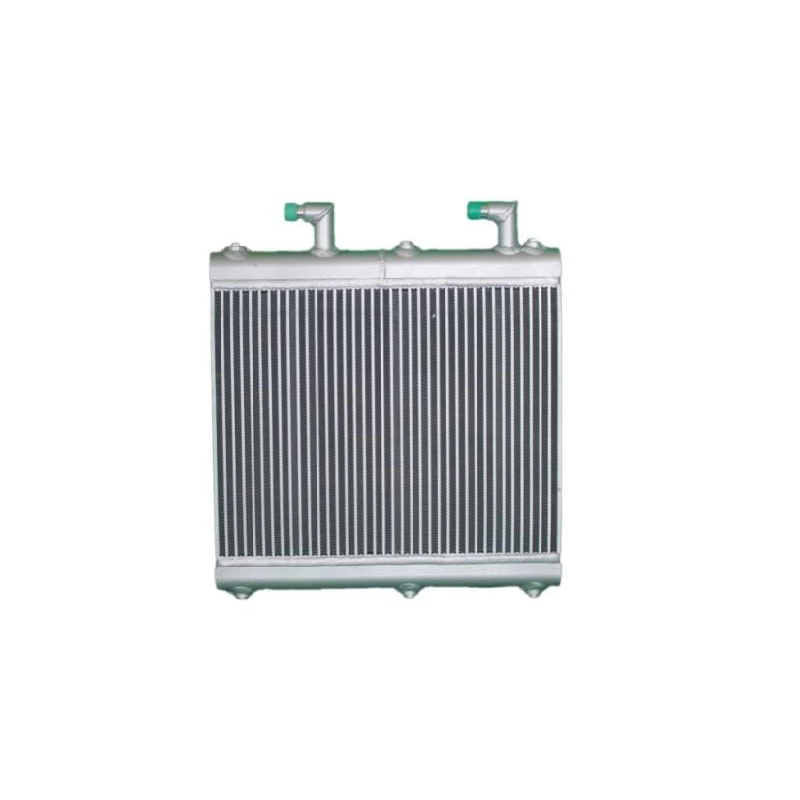

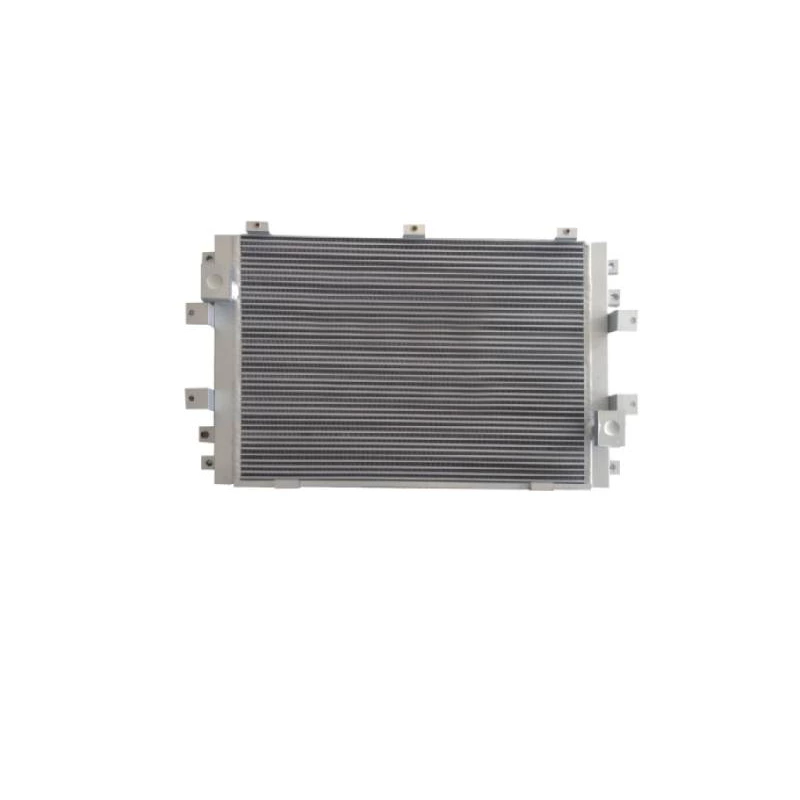

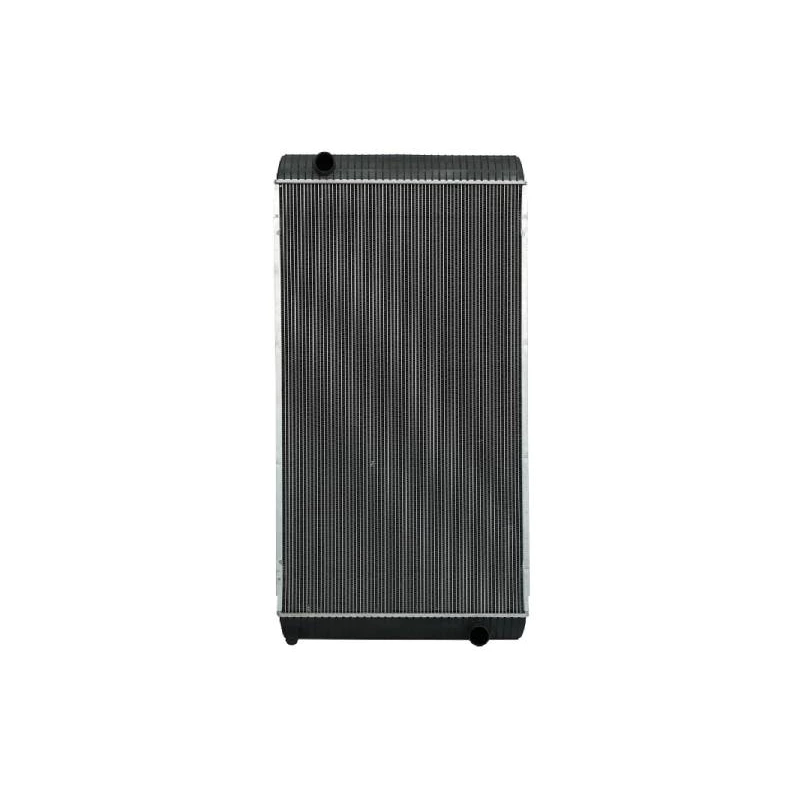

The Volvo excavator radiator is designed to provide efficient heat exchange for construction machinery operating in demanding environments. It supports both engine cooling and hydraulic oil cooling systems, ensuring stable performance and reduced risk of overheating.
Volvo excavators are widely used in construction, mining, and infrastructure projects, where continuous operation and high load conditions require reliable thermal management solutions.
Optimized internal flow channels and high thermal conductivity materials help improve cooling efficiency and system durability.
Applications
- Excavator engine cooling systems
- Hydraulic oil cooling systems
- Wheel loader cooling systems
- Dump truck and heavy equipment cooling
- Mining and construction environments
- Continuous heavy-duty operation
Specifications of Volvo Excavator Radiator
The following specifications provide general technical information for Volvo radiator systems. Detailed configurations can be customized based on specific equipment models and working conditions.
| Brand Name |
JSY |
| Product Name |
VOLVO Excavator Radiator Assembly/Cooler |
| Materials |
Aluminum Alloy |
| Operating Temperature |
-40℃-60 ℃ |
| Tonnage |
1.7 t - 100 t |
| Applicable Excavators |
Volvo |
| Structure |
Plate-Fin |
| Application |
Hydraulic Cooling System |
| Cooling Medium |
Oil/Water |
| Tonnage |
1.7 t - 100 t |
Key Features of VOLVO Excavator Radiator Assembly/Cooler
1. High-Efficiency Heat Transfer Performance
Manufactured with high thermal conductivity aluminum alloy, this radiator ensures excellent heat dissipation efficiency. It rapidly reduces intake air and hydraulic oil temperatures, helping maintain stable engine performance even under heavy-duty operating conditions.
2. Excellent Strength and Pressure Resistance
Designed to withstand pressure fluctuations commonly found in excavator cooling and compressed air systems, the radiator offers outstanding structural strength, high reliability, and extended service life.
3. Superior Atmospheric Corrosion Resistance
The aluminum construction provides strong resistance to atmospheric corrosion, ensuring long-term durability in outdoor, high-humidity, and dusty working environments.
4. Cost-Effective Cooling Solution
With optimized material selection and manufacturing processes, this radiator delivers excellent performance at a highly competitive price, offering exceptional value for Komatsu excavator replacement and OEM applications.
5. Advanced Anti-Vibration Structure for Harsh Conditions
Equipped with a newly designed vibration-damping frame, the radiator effectively absorbs mechanical vibrations. It performs reliably in harsh environments such as construction sites and mining operations, making it an ideal cooling solution for heavy-duty machinery.
