Compatible CASE Excavator Models
| Model |
Equipment Type |
Cooling Type |
Core Size (mm) |
Notes |
| CASE CX35 |
Compact Excavator |
Water Radiator |
370 × 525 |
Compact structure, stable cooling |
| CASE CX55 |
Compact Excavator |
Water Radiator |
550 × 470 × 48 |
Easy installation, space-saving design |
| CASE CX58 |
Compact Excavator |
Water / Oil Cooling |
470 × 635 × 62 |
Suitable for combined cooling systems |
| CASE CX75 / CX80 |
Medium Excavator |
Water Radiator |
725 × 215 × 70 |
Balanced cooling performance |
| CASE CX210B |
Medium Excavator |
Water Radiator |
870 × 485 × 80 |
Common industrial application |
| CASE CX210M |
Medium Excavator |
Water Radiator |
760 × 1020 |
Designed for continuous operation |
| CASE CX240B |
Large Excavator |
Water Radiator |
930 × 580 × 80 |
High-load cooling capacity |
| CASE CX360B |
Large Excavator |
Water Radiator |
1070 × 580 × 80 |
Heavy-duty working conditions |
| CASE 580 / 580L |
Loader / Backhoe |
Water Radiator |
470 × 520 × 106 / 570 × 570 × 106 |
Suitable for industrial machinery |
| CASE CS580 |
Compactor / Equipment |
Oil Cooler |
565 × 565 |
Hydraulic cooling application |
Custom radiator solutions are available based on your machine model, technical drawings, or specific requirements. Contact us for accurate matching and technical support.

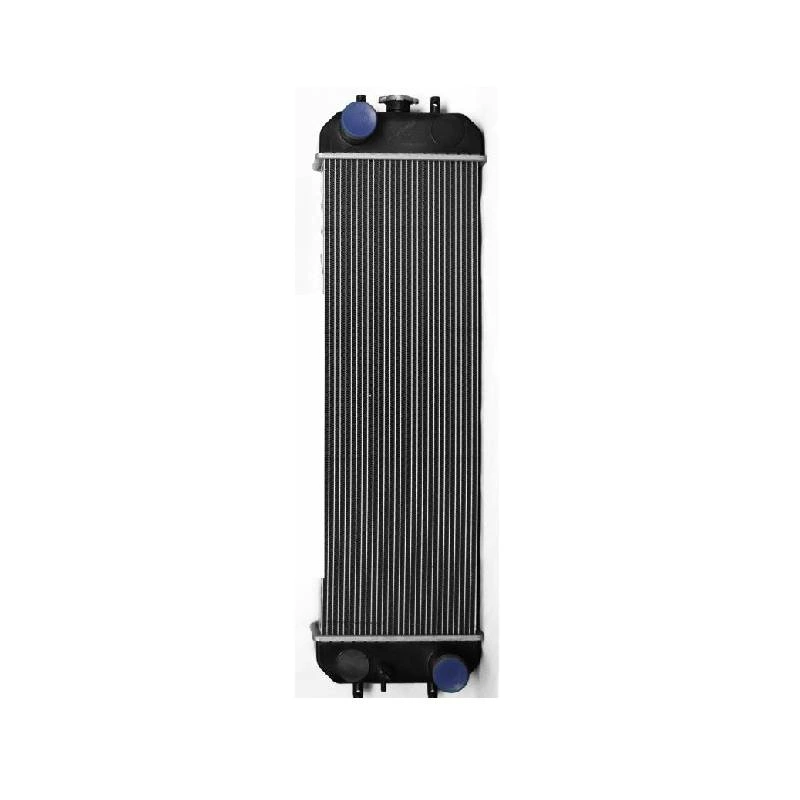

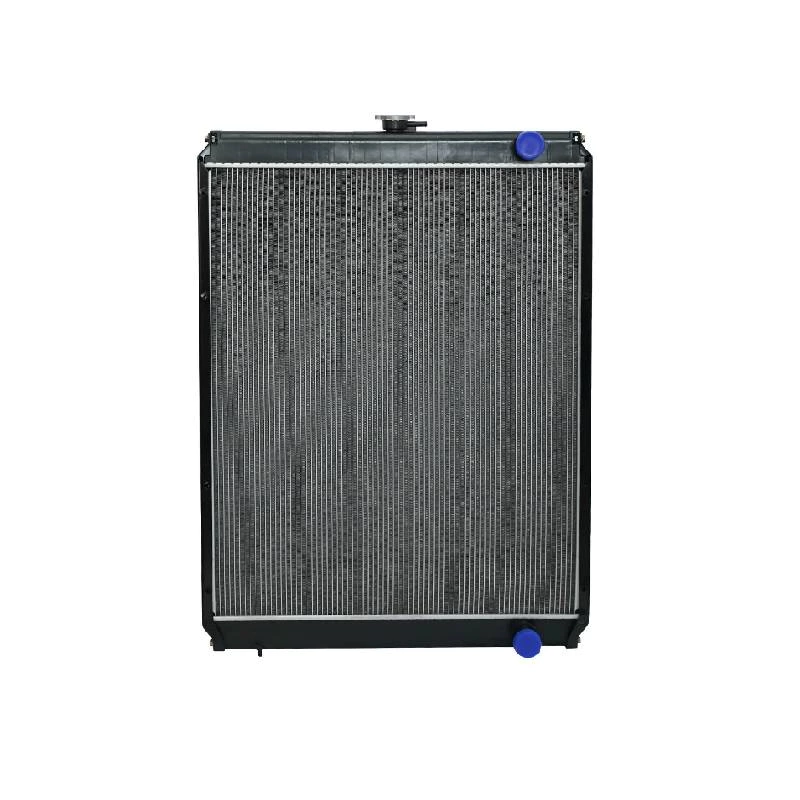

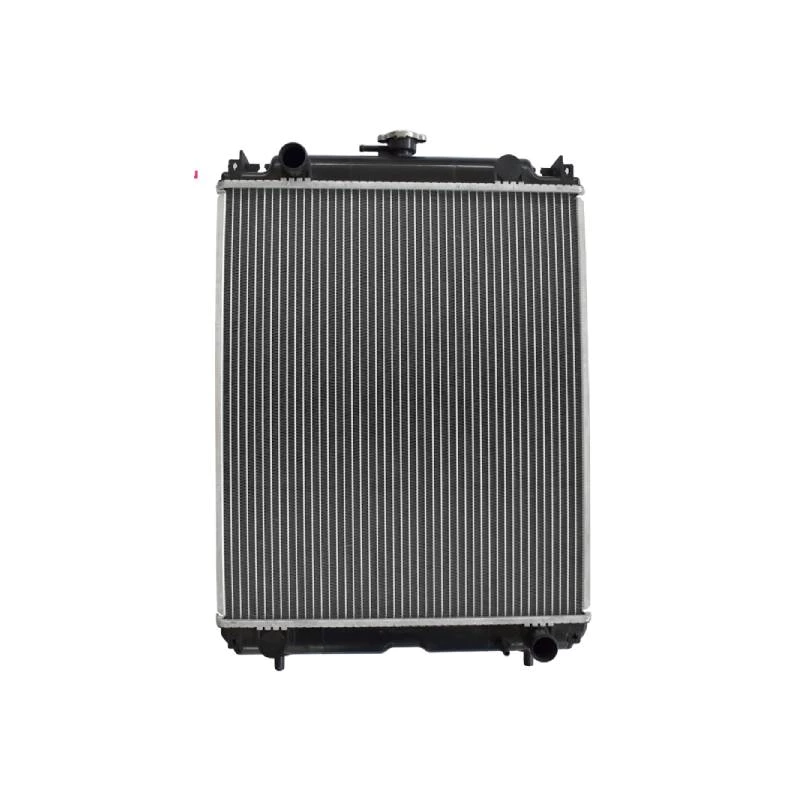

Product Overview
The CASE excavator radiator is engineered to support efficient heat dissation in construction machinery operating under high load and continuous working conditions. It provides stable cooling for both engine systems and hydraulic oil circuits, ensuring reliable performance in demanding environments.
Excavators rely on integrated cooling systems including radiators, oil coolers, and intercoolers to maintain proper operating temperatures under heavy workloads.
Compared with standard radiators, this configuration offers improved durability, stronger structural stability, and enhanced heat exchange efficiency, making it suitable for OEM integration and replacement applications.
Applications
- Excavator engine cooling systems
- Hydraulic oil cooling systems
- Construction machinery thermal management
- Mining and heavy-duty equipment
- Continuous operation industrial environments
Specifications of CASE Excavator Radiator
The following specifications provide general technical information for CASE excavator radiators. Detailed configurations can be customized based on different machine models and working conditions.
| Brand Name |
JSY |
| Product Name |
CASE Excavator Radiator Assembly/Cooler |
| Materials |
Aluminum Alloy |
| Operating Temperature |
-40℃-60 ℃ |
| Tonnage |
3.5 t - 58 t |
| Applicable Excavators |
CASE |
| Structure |
Plate-Fin |
| Application |
Hydraulic Cooling System |
| Cooling Medium |
Oil/Water |
| Tonnage |
3.5 t - 58 t |
Why Choose Our CASE Excavator Radiators
Our CASE excavator radiators are designed to meet the demanding requirements of construction machinery applications.
- Engineered for CASE excavator radiator systems with high-efficiency heat dissipation
- Designed to support cooling performance in CASE construction machinery under heavy load
- Aluminum plate-fin structure ensures durability and corrosion resistance in harsh environments
- Provides stable cooling for CASE excavator engine and hydraulic oil systems
- Supports OEM replacement and custom solutions for different CASE excavator models
Custom CASE Excavator Radiator Solutions
- Custom core size and structure
- Multi-model compatibility support
- OEM and replacement solutions
- Different fin types and airflow design
- Designed for specific working conditions
Key Features of CASE Excavator Radiator Assembly/Cooler
1. High-Efficiency Heat Transfer Performance
Manufactured with high thermal conductivity aluminum alloy, this radiator ensures excellent heat dissipation efficiency. It rapidly reduces intake air and hydraulic oil temperatures, helping maintain stable engine performance even under heavy-duty operating conditions.
2. Excellent Strength and Pressure Resistance
Designed to withstand pressure fluctuations commonly found in excavator cooling and compressed air systems, the radiator offers outstanding structural strength, high reliability, and extended service life.
3. Superior Atmospheric Corrosion Resistance
The aluminum construction provides strong resistance to atmospheric corrosion, ensuring long-term durability in outdoor, high-humidity, and dusty working environments.
4. Cost-Effective Cooling Solution
With optimized material selection and manufacturing processes, this radiator delivers excellent performance at a highly competitive price, offering exceptional value for Komatsu excavator replacement and OEM applications.
5. Advanced Anti-Vibration Structure for Harsh Conditions
Equipped with a newly designed vibration-damping frame, the radiator effectively absorbs mechanical vibrations. It performs reliably in harsh environments such as construction sites and mining operations, making it an ideal cooling solution for heavy-duty machinery.
