Compatible SUMITOMO Excavator Models and Dimensions
| Model |
Equipment Type |
Cooling Type |
Core Size (mm) |
Notes |
| SH60 |
Mini Excavator |
Oil Cooler |
470 × 520 × 50 |
Compact equipment |
| SH100 |
Excavator |
Oil Cooler |
720 × 510 × 65 |
Hydraulic cooling |
| SH120 |
Excavator |
Water / Oil |
730 × 880 × 76 / 720 × 510 × 65 |
Standard application |
| SH120A3 |
Excavator |
Water Radiator |
730 × 880 × 76 |
Stable performance |
| SH135 / SH140 |
Excavator |
Water Radiator |
265 × 980 |
Medium-duty |
| SH200A1 |
Excavator |
Water / Oil |
750 × 820 × 50 / 700 × 875 × 50 |
Common model |
| SH200A2 |
Excavator |
Water Radiator |
760 × 970 |
Continuous operation |
| SH200A3 |
Excavator |
Water / Oil |
760 × 965 × 100 / 700 × 800 × 50 |
High efficiency |
| SH210 |
Excavator |
Water Radiator |
447 × 970 × 120 |
Industrial use |
| SH210A5 / SH210-5 |
Excavator |
Water / Oil |
795 × 455 × 90 / 840 × 480 × 75 |
Stable cooling |
| SH240-5 |
Excavator |
Oil Cooler |
900 × 510 × 75 |
Hydraulic system |
| SH240A3 |
Excavator |
Water Radiator |
735 × 895 × 70 |
Standard configuration |
| SH320 / SH350-3 |
Excavator |
Water / Oil |
1035 × 490 × 90 / 1070 × 580 × 80 |
Large excavator |
| SH340 |
Excavator |
Oil Cooler |
810 × 920 × 90 |
High-load operation |
| SH350A3 |
Excavator |
Oil Cooler |
925 × 1040 × 60 |
Heavy-duty use |
| SH350-5 / SH360HD-5 |
Excavator |
Water Radiator |
1035 × 490 × 90 |
Mining conditions |
| SH350-6 |
Excavator |
Water Radiator |
445 × 1180 |
Large system |
| SH450-3 / SH450-5 |
Excavator |
Oil Cooler |
1040 × 580 × 75 |
High-capacity cooling |
The above models and dimensions are for reference only. SUMITOMO excavators may vary depending on configuration and working conditions. Custom radiator and oil cooler solutions can be developed based on technical drawings and specific application requirements.

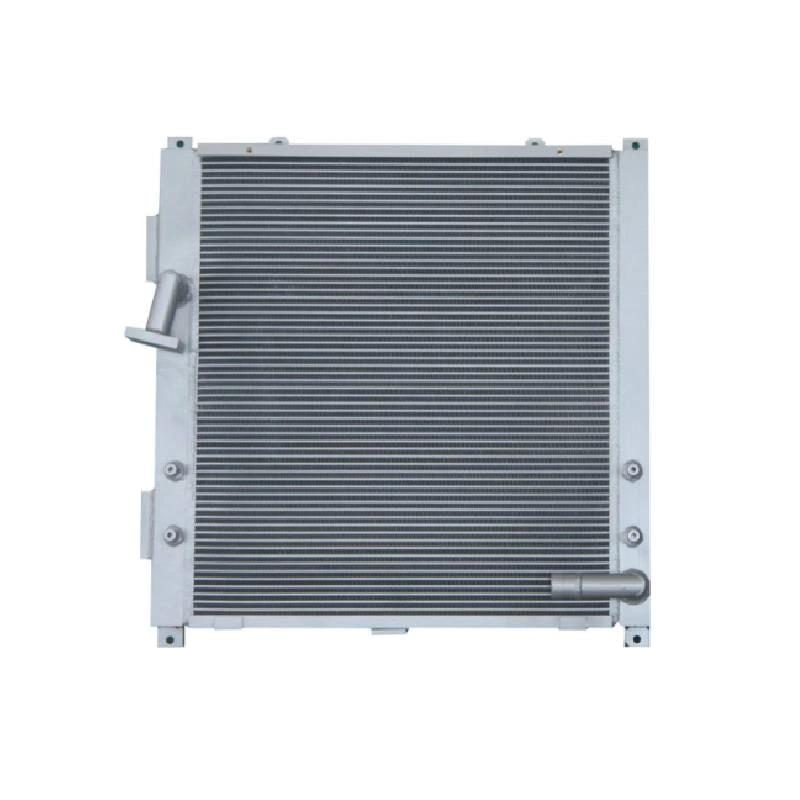

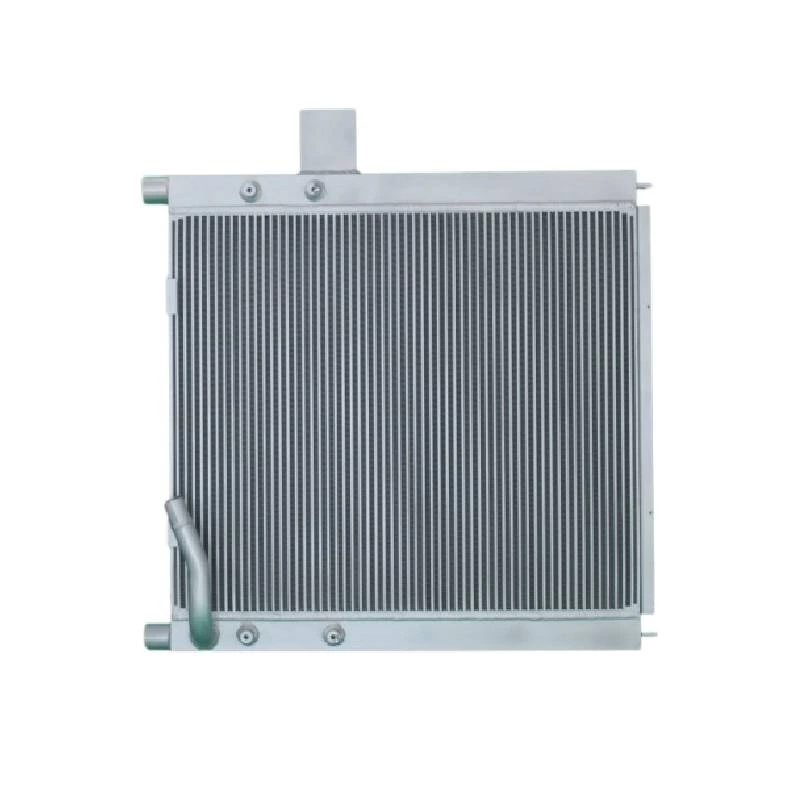

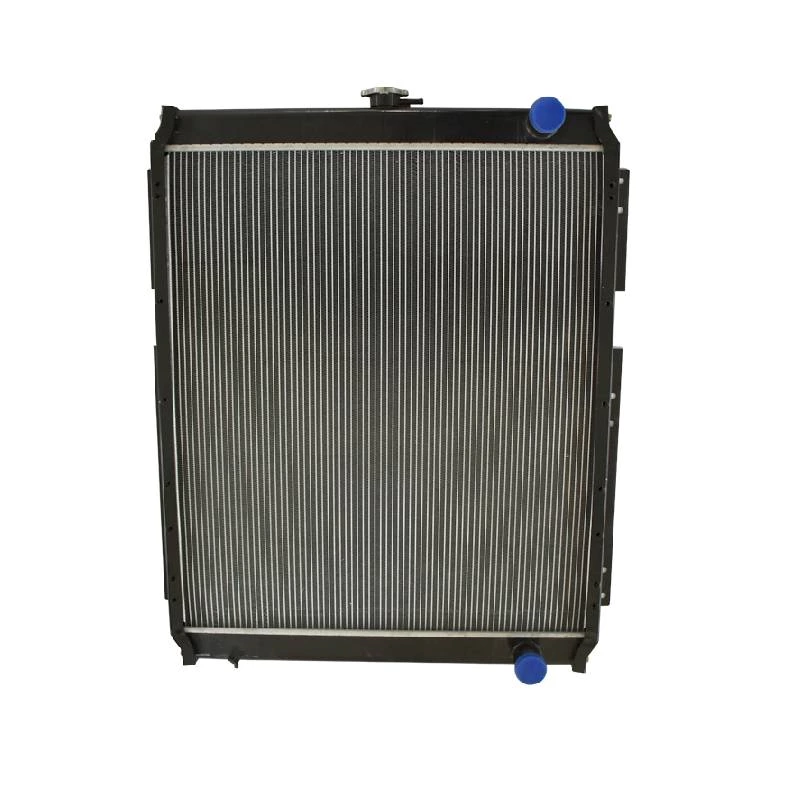

Product Overview
SUMITOMO excavators are widely used in construction, earthmoving, and heavy-duty industrial applications where reliable cooling systems are essential for long operating cycles. The SUMITOMO excavator radiator is designed to provide efficient heat dissipation for both engine and hydraulic systems.
With a high-performance aluminum plate-fin structure, the radiator ensures strong thermal conductivity and durability. Optimized internal flow channels help maintain stable operating temperatures, improving equipment efficiency and reducing the risk of overheating in demanding environments.
Applications
- SUMITOMO excavator engine cooling systems
- Hydraulic oil cooling systems
- SH series excavators
- Construction and earthmoving equipment
- Mining and heavy-duty industrial applications
- Continuous high-load working environments
Specifications of SUMITOMO Excavator Radiator
The following specifications provide general technical information for SUMITOMO excavator radiators. Detailed configurations can be customized according to machine models, installation space, and cooling requirements.
| Brand Name |
JSY |
| Product Name |
SUMITOMO Excavator Radiator Assembly/Cooler |
| Materials |
Aluminum Alloy |
| Operating Temperature |
-40℃-60 ℃ |
| Tonnage |
6 t - 75 t |
| Applicable Excavators |
SUMITOMO |
| Structure |
Plate-Fin |
| Application |
Hydraulic Cooling System |
| Cooling Medium |
Oil/Water |
| Tonnage |
6 t - 75 t |
Why Choose Our SUMITOMO Excavator Radiators
- Engineered for SUMITOMO radiator systems with efficient heat transfer
- Compatible with multiple SH series excavators
- Aluminum plate-fin core ensures durability and corrosion resistance
- Stable cooling performance under continuous and heavy-duty operation
- Designed for construction and mining environments
- Supports OEM replacement and custom radiator manufacturing
Custom SUMITOMO Radiator Solutions
- Custom core size and structure design
- Multi-model compatibility support
- OEM and aftermarket radiator solutions
- Optimized airflow and fin configuration
- Designed for specific working conditions
- Technical support for drawings, samples, and bulk orders
Key Features of SUMITOMO Excavator Radiator Assembly/Cooler
1. High-Efficiency Heat Transfer Performance
Manufactured with high thermal conductivity aluminum alloy, this radiator ensures excellent heat dissipation efficiency. It rapidly reduces intake air and hydraulic oil temperatures, helping maintain stable engine performance even under heavy-duty operating conditions.
2. Excellent Strength and Pressure Resistance
Designed to withstand pressure fluctuations commonly found in excavator cooling and compressed air systems, the radiator offers outstanding structural strength, high reliability, and extended service life.
3. Superior Atmospheric Corrosion Resistance
The aluminum construction provides strong resistance to atmospheric corrosion, ensuring long-term durability in outdoor, high-humidity, and dusty working environments.
4. Cost-Effective Cooling Solution
With optimized material selection and manufacturing processes, this radiator delivers excellent performance at a highly competitive price, offering exceptional value for Komatsu excavator replacement and OEM applications.
5. Advanced Anti-Vibration Structure for Harsh Conditions
Equipped with a newly designed vibration-damping frame, the radiator effectively absorbs mechanical vibrations. It performs reliably in harsh environments such as construction sites and mining operations, making it an ideal cooling solution for heavy-duty machinery.
