Specifications of 22KW Screw Air Compressor Cooler
The following specifications outline the key technical parameters of the 22KW 15Bar Air Compressor Aftercooler, including structural dimensions, pressure rating, and system compatibility. These data support accurate selection for high-power compressor systems.
| Brand Name |
JSY |
| Product Name |
Compressor Cooler B3802 |
| Model Number |
B3802 |
| Material |
aluminum alloy |
| Weight(Kg) |
12.6kg |
| Compatible air compressor specifications |
30HP(22KW) |
| OEM/ODM |
YES |
| Overall dimensions (mm) |
700*580*80mm |
| Core size (mm) |
585*530*55mm |
| Inlet and outlet diameter (mm) |
φ40 & G1 |
| Maximum Pressure Rating |
15bar |
| Certification |
ISO9001:2008 |
| Heat Exchanger Type |
Plate bar air compressor heat exchanger |
How to Select the Right Model
Selecting the appropriate compressor cooler depends on compressor power, working pressure, airflow demand, and installation space. For 22KW systems operating under higher pressure conditions, it is important to ensure the cooler supports both thermal load and structural stability. The B3802 configuration is suitable for applications requiring reliable cooling under 15bar working conditions.
Key Advantages
- High-efficiency heat transfer supports stable cooling under high-load conditions
- Plate-fin structure enhances cooling performance and temperature control
- Strong structure ensures reliable operation under 15bar pressure systems
- Corrosion-resistant aluminum materials extend service life in industrial environments
- Optimized design balances cooling efficiency and structural durability
- Suitable for 22KW screw air compressors with high system compatibility
Suitable Applications
- 22KW screw air compressor systems in industrial production lines
- High-pressure compressor systems operating up to 15bar
- Manufacturing plants requiring stable compressed air supply
- Oil-injected compressors with continuous cooling demand
- Industrial equipment requiring reliable air and oil cooling
- Heavy-duty compressor applications with long operating cycles
Product Overview

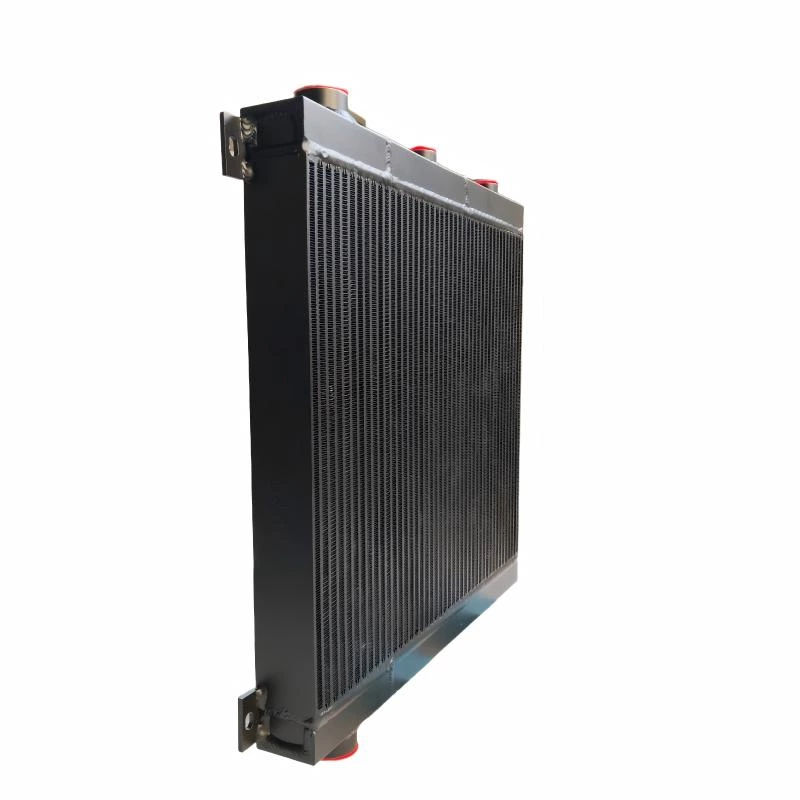

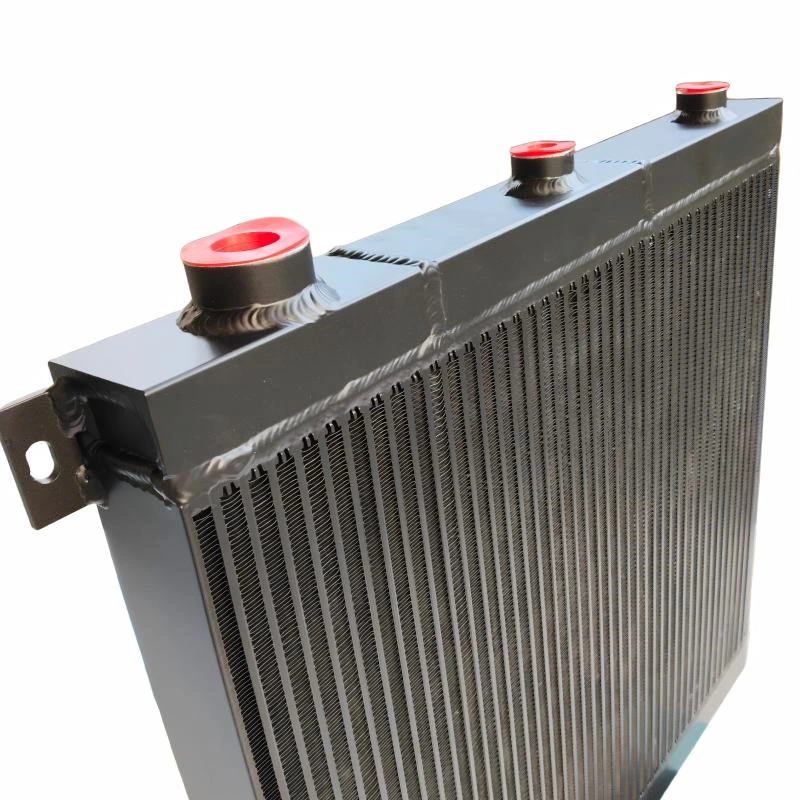

The 22KW Screw Air Compressor Cooler is developed to handle higher thermal loads generated by medium-to-high power compressor systems. Using a high-performance aluminum plate-fin structure, it provides efficient heat dissipation for both compressed air and lubricating oil under continuous operation.
Compared with lower power cooling units, the 22KW Screw Air Compressor Cooler is designed with stronger structural support and higher pressure tolerance, making it suitable for systems operating up to 15bar. The optimized heat exchange surface improves cooling efficiency while maintaining compact dimensions for easier system integration.
This configuration is particularly suitable for industrial environments where compressors operate under higher pressure and load conditions, requiring stable cooling performance, durable structure, and long-term operational reliability.
Why Cooling Matters
In high-power compressor systems, heat generation increases significantly as operating pressure and load rise. Without effective cooling, excessive temperature can reduce system efficiency, accelerate oil degradation, and increase wear on internal components.
Maintaining stable cooling performance is essential for ensuring reliable operation, reducing downtime risk, and extending the service life of compressor systems operating under high-pressure conditions.
Industrial Cooling Solution
The 22KW Screw Air Compressor Cooler provides a reliable solution for industrial compressor systems requiring stable cooling performance under high load and pressure conditions. It is suitable for equipment manufacturers, system integrators, and industrial users looking for durable, efficient, and easy-to-integrate cooling solutions.
