Plate-fin air-cooled cores are designed for efficient heat dissipation in radiators, intercoolers, and other air-cooled heat exchanger systems. With aluminum plate-fin structure, they offer compact design, reliable cooling performance, and flexible customization for industrial, vehicle, and heavy-duty cooling applications.
Browse our plate-fin air-cooled core specifications for radiator and intercooler applications that require efficient airflow cooling, stable heat dissipation, and compact aluminum core design.
| Model | Core Size (mm) | Weight (kg) | Material | Structure | Typical Application | Customization |
|---|---|---|---|---|---|---|
| JSY2634 | 430×120×100 | 4.3 | Aluminum Alloy | Plate-Fin | Construction Machinery / Heavy Trucks | Custom Available |
| JSY2626 | 650×135×140 | 8.5 | Aluminum Alloy | Plate-Fin | Construction Machinery / Heavy Trucks | Custom Available |
| JSY2619 | 235×565×60 | 6.3 | Aluminum Alloy | Plate-Fin | Auto Cooling System | Custom Available |
| JSY2616 | 610×356×89 | 14 | Aluminum Alloy | Plate-Fin | Auto Cooling System | Custom Available |
| JSY2601 | 665×725×80 | 25.5 | Aluminum Alloy | Plate-Fin | Auto Cooling System | Custom Available |
| JSY2600 | 665×725×80 | 25.5 | Aluminum Alloy | Plate-Fin | Auto Cooling System | Custom Available |
| JSY2574 | 1162×406×200 | 69.2 | Aluminum Alloy | Plate-Fin | Auto Cooling System | Custom Available |
| JSY2576 | 635×320×55 | 8 | Aluminum Alloy | Plate-Fin | Auto Cooling System | Custom Available |
| JSY2575* | 1370×620×140 | 80 | Aluminum Alloy | Plate-Fin | — | Custom Available |

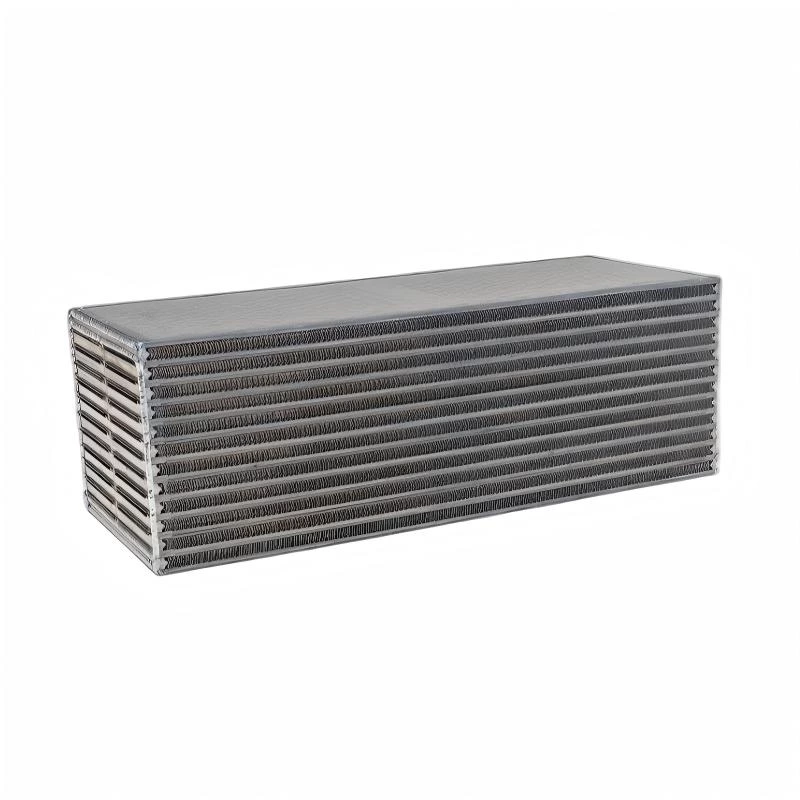

We provide custom plate-fin air-cooled core solutions for radiator, intercooler, and heat exchanger applications. Core size, fin structure, airflow layout, material, and connection design can be customized according to different equipment, cooling requirements, and installation conditions.
A plate-fin air-cooled core is an aluminum heat exchange core designed to dissipate heat through airflow. It is commonly used in radiators, intercoolers, and other air-cooled heat exchanger systems.
Plate-fin air-cooled cores are widely used in radiators, intercoolers, industrial heat exchangers, commercial vehicles, and other equipment that requires efficient air-side cooling.
An air-cooled core releases heat through airflow, while a water-cooled core transfers heat through liquid circulation. Air-cooled cores are often used where direct airflow cooling and simpler system design are preferred.
Our air-cooled cores are typically made of aluminum with a plate-fin structure. This design provides efficient heat transfer, light weight, compact size, and reliable performance in demanding applications.
Yes. The core size, fin structure, layout, and connection design can be customized according to application requirements, installation space, airflow conditions, and cooling capacity.
The right core can be selected based on application type, required dimensions, airflow conditions, heat load, and available installation space. Custom solutions are available for different systems and operating requirements.
