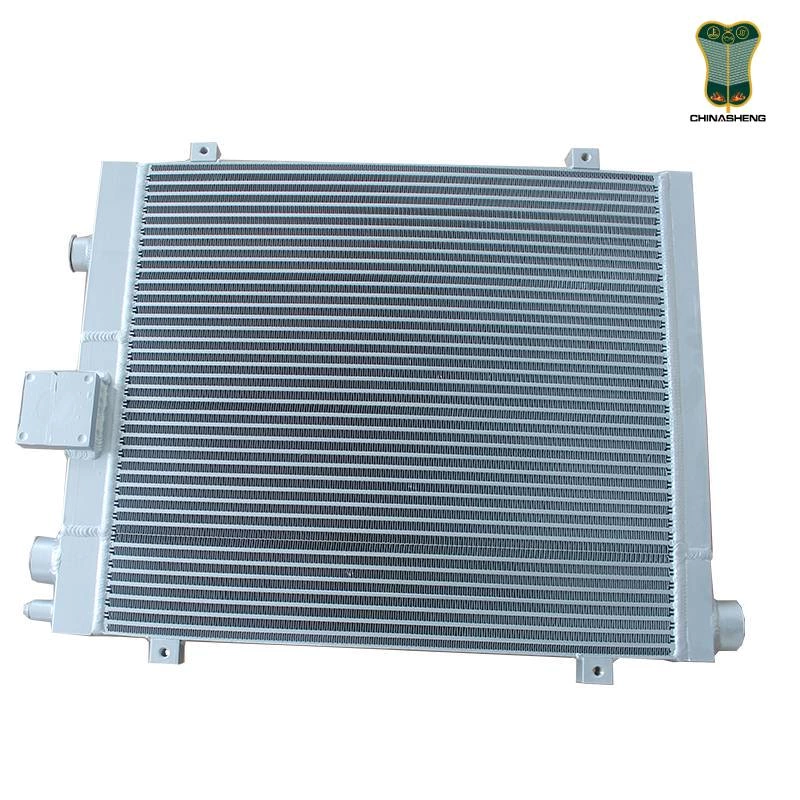

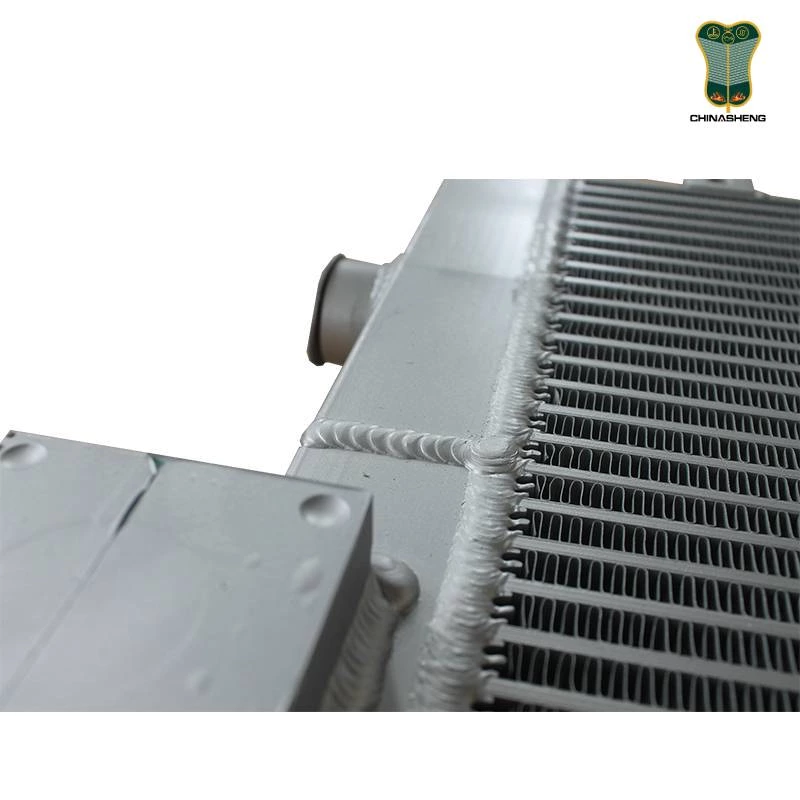

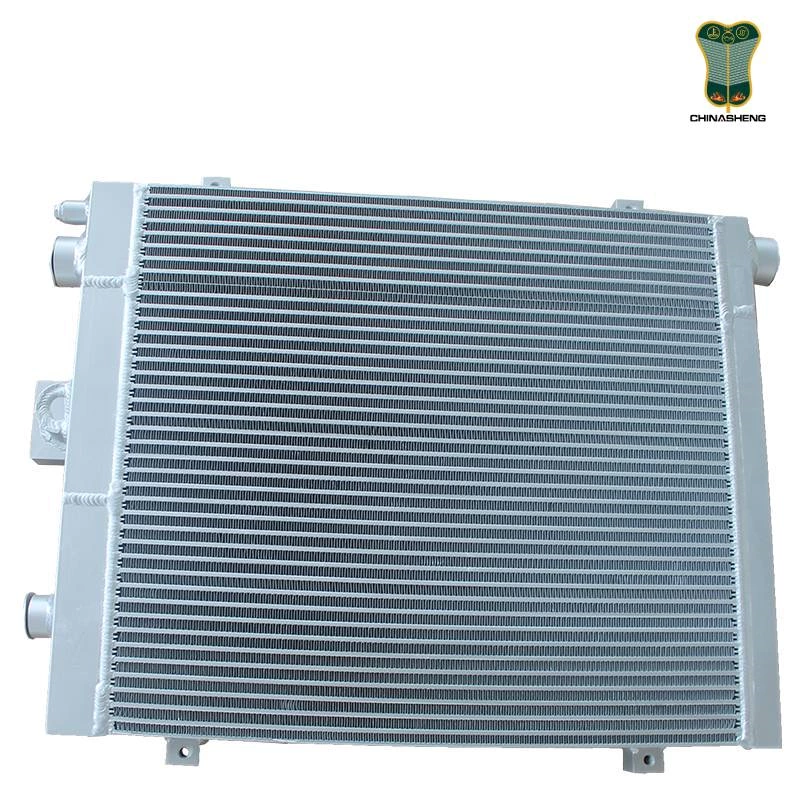

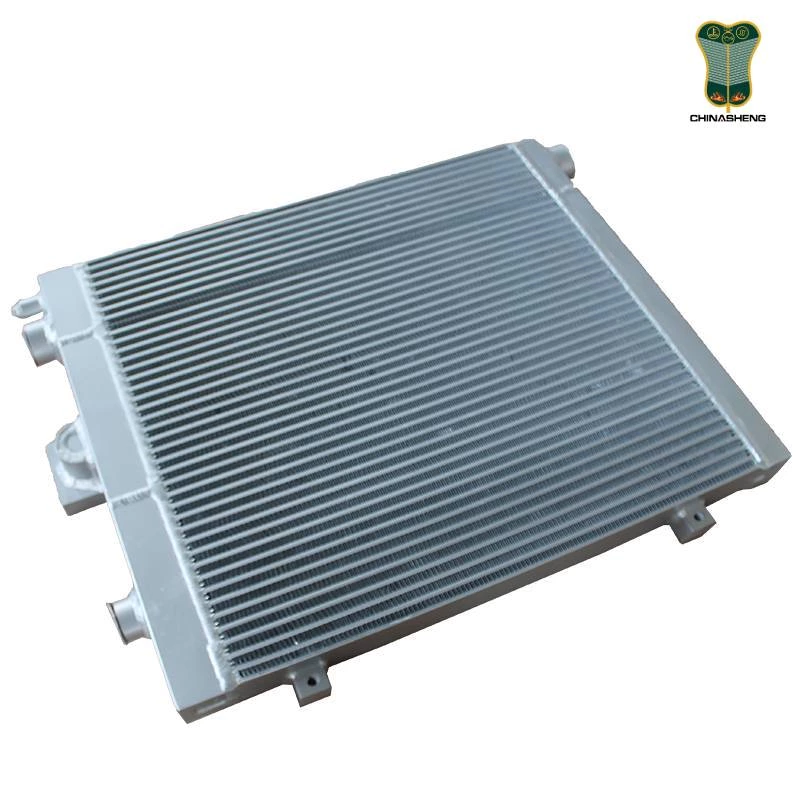

Product Name:compressor Cooler B3802

Our compressor coolers adopt aluminum plate-fin structure. With its outstanding features of high efficiency, compactness, light weight, sturdiness and high cost performance, they have become the mainstream technology for modern industrial compressed air cooling treatment.

Characteristics

1. High-efficiency heat transfer performance
2. Exceptional strength and pressure resistance
3. Excellent resistance to atmospheric corrosion;
4. Cost-effective with exceptional value for money, making it an ideal choice for most industrial applications.

Product Name Compressor Cooler B3802
Model Number  B3802
Material aluminum alloy
Weight(Kg) 12.6kg
Compatible air compressor specifications 30HP(22KW)
OEM/ODM YES
Overall dimensions (mm) 700*580*80mm
Core size (mm) 585*530*55mm
Inlet and outlet diameter (mm) φ40 & G1

Features of the Compressor Cooler B3802

1. High-efficiency heat transfer performance

The Compressor Cooler B3802 is manufactured from high-thermal-conductivity aluminum alloy material, delivering superior heat transfer efficiency to rapidly reduce intake air and oil temperatures;

2. Exceptional strength and pressure resistance, capable of withstanding common working pressure fluctuations in compressed air systems, ensuring high reliability and extended service life;

3. Excellent resistance to atmospheric corrosion;

4. Cost-effective with exceptional value for money, making it an ideal choice for most industrial applications.

Application Scenarios for Compressor Cooler B3802

The B3802 compressor cooler is widely used in the full range of air compressors from renowned domestic and international manufacturers, including Atlas Copco, Ingersoll Rand, Sullair, Kaishan, and others.
